Description

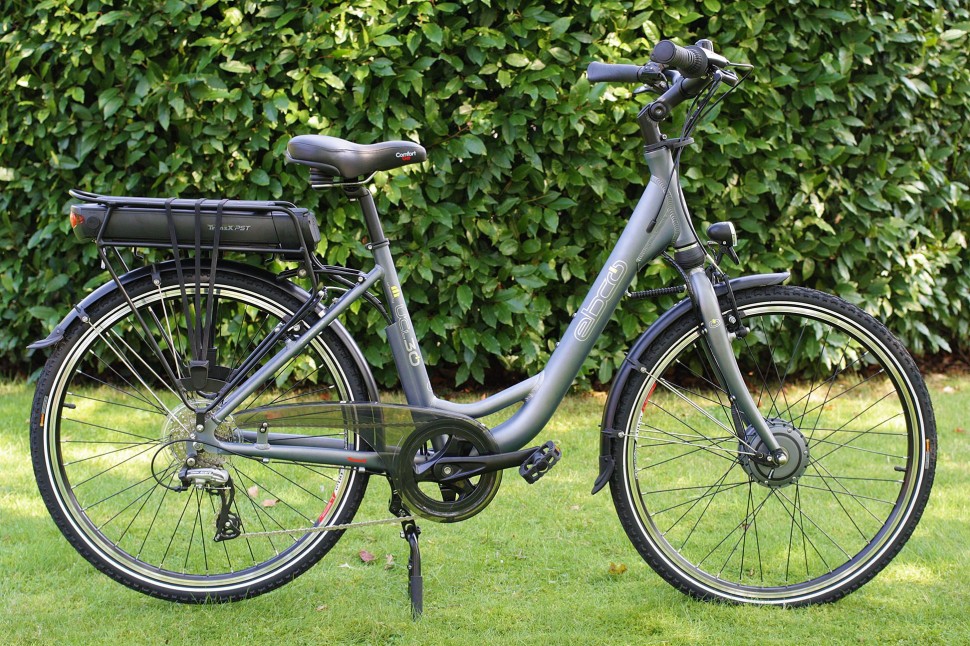

The 2017 Ebco UCL 30 electric bike featured a 250W TranzX F15 front hub motor, a 36V 11AH (400WH) battery with a 30-50 mile range, and a 6061 alloy frame with headstock suspension forks for added comfort. It was equipped with a Tektro 9-speed drivetrain, Tektro hydraulic disc brakes, and a DP27 LCD display with four power assist modes and a walk assist function.

Motor and battery

  • Motor: TranzX F15 250W 36V front hub motor with an RPM sensor
  • Battery: 36V 11AH (400Wh) Lithium-ion battery, removable for charging
  • Range: 30-50 miles (depending on factors like terrain and assistance level)
  • Recharge time: 5-6 hours from flat

Frame and components

  • Frame: Low step 6061 aluminium frame with a comfort front suspension unit
  • Fork: Alloy rigid fork
  • Brakes: Tektro hydraulic disc brakes with 160mm rotors
  • Drivetrain:
    • Shifters: Tektro 9-speed
    • Rear derailleur: Tektro 9-speed clutch mech
    • Cassette: Tektro 9-speed, 11-46T
    • Chainwheel: Samox 38T
  • Wheels: Ebco alloy 36H rims with Innova 48/52mm reflective tyres
  • Other components:
    • Alloy stem and handlebar
    • Promax 30.9 x 300mm seat post
    • Ebco comfort saddle
    • Rear carrier, side kickstand, front and rear lights, and mudguards

Please Note:  The bike is missing the key to remove the battery pack.
